Shower Arm and FlangeUpdated a month ago

Below you'll find the installation guide for the Shower Arm and Flange, along with an installation video.

Installation Guide

Installation Steps:

1. Remove the Existing Shower Head:

   • Detach it to get started.

2. Loosen the Flange:

   • Use a utility knife to cut any silicone or plumber's putty around the flange.

3. Remove the Old Shower Arm:

   • Insert a screwdriver into the hole of the shower arm for leverage.
   • Unthread the shower arm counter-clockwise.

4. Prepare the New Shower Arm:

   • Slide the flange over the new shower arm.

5. Apply Thread Seal Tape:

   • Wrap both ends of the shower arm threads with Teflon tape, applying it counter-clockwise (aim for about 10 turns).

6. Install the New Shower Arm:

   • Guide the shower arm into the wall's hole and start threading it in clockwise with the screwdriver.

7. Tighten and Square the Arm:

   • When it gets tight, give it one last turn to square it up in the shower.

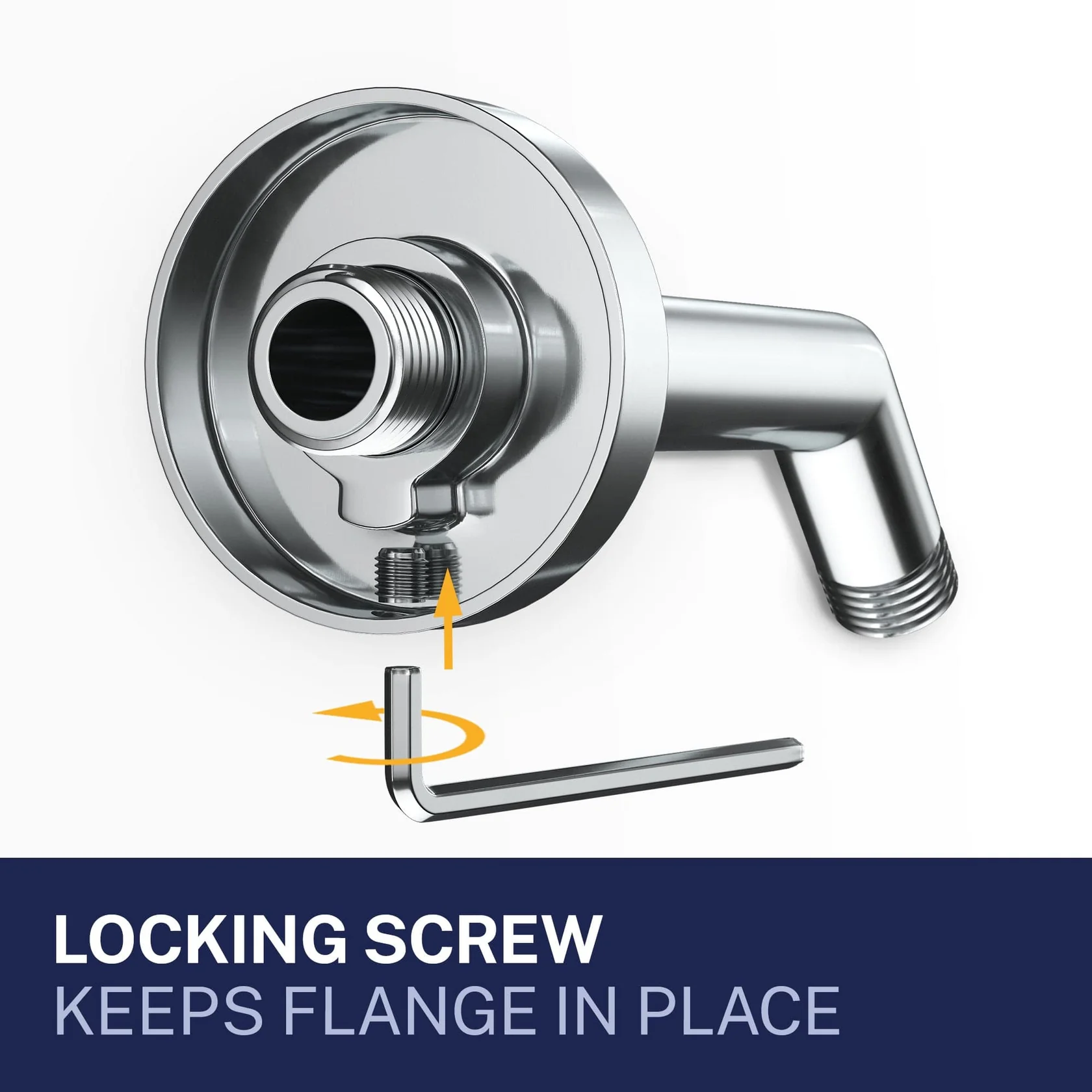

8. Secure the Flange:

   • Slide the flange against the wall and tighten the set screw to secure it.

9. Seal the Edges:

   • Use silicone sealant around the edges for a clean finish.
